Bias Power Supply for THz Emitter

 Download datasheet

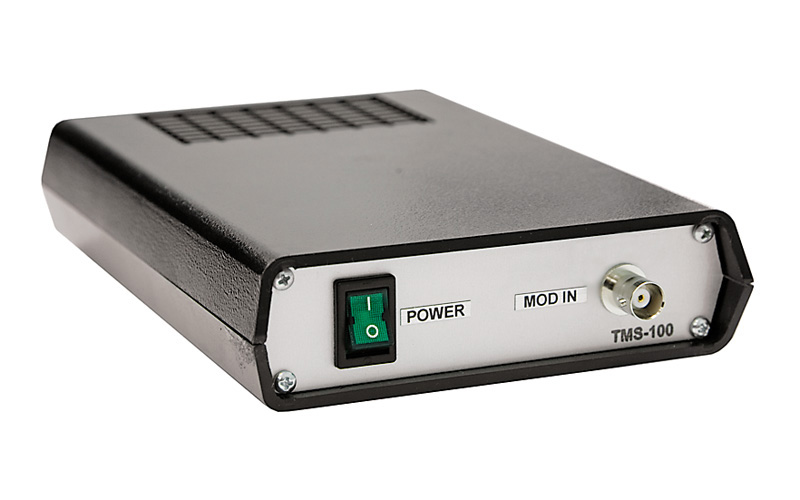

Features of bias power supply TMS-100 for THz emitter

  • Low noise
  • DC or square wave output (needs external TTL input)
  • Cable for connection to THz emitter included

Specifications

Parameter Value
Square-wave modulation frequency 10 Hz - 100 kHz
Output voltage 30-70 V (adjustable)
Max current 1 mA
Output socket BNC
Mains 100/220 VAC, 50/60 Hz
Dimensions (WxLxH) 130x190x39 mm

Ordering Information


Description Model Notes
TMS-100 bias power supply TMS-100 30-70 V DC or square-wave output
