THz Emitter/Detector Mounting Stage
Description
Separately from THz emitter and detector TERAVIL provides convenient mounting stage compatible with both devices. It contains lens, mounted on adjustable XY holder, compact stage for shifting lens along optical axis and rail, on which both: lens and emitter/detector are mounted.
This helps with pump beam guiding to the gap between electrodes located on photoconductive antenna, as well as adjusting beam diameter on active surface. Convenient fixing screws allow fast mounting and removing each part of this simple setup.
Specifications
|
Parameter |
Value |
Beam height* |
107 mm |
X, Y axis travel range |
3 mm |
Z axis travel range |
13 mm |
Lens diameter |
25.4 mm |
Lens focal length |
50 mm |
Lens anti-reflection coating |
AR/AR at selected wavelength (standard: 800/1030/1064 nm) |
*Under request beam height could be increased by adding additional plates with standard height of 15 or 25 mm. |
|

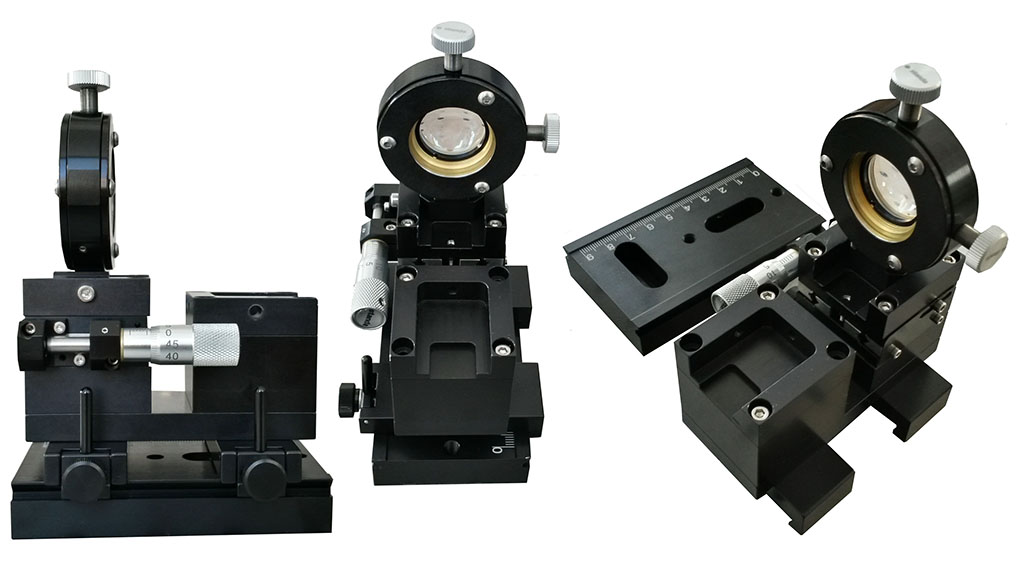

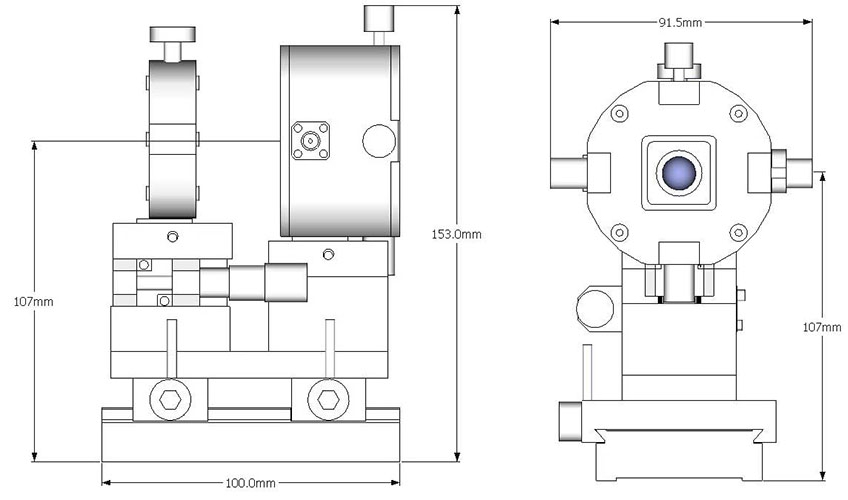

Drawings & Images

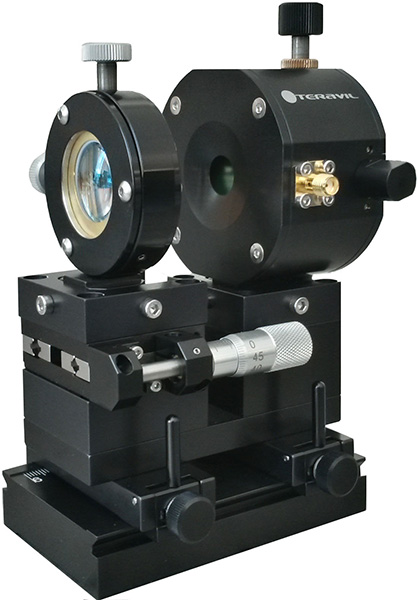

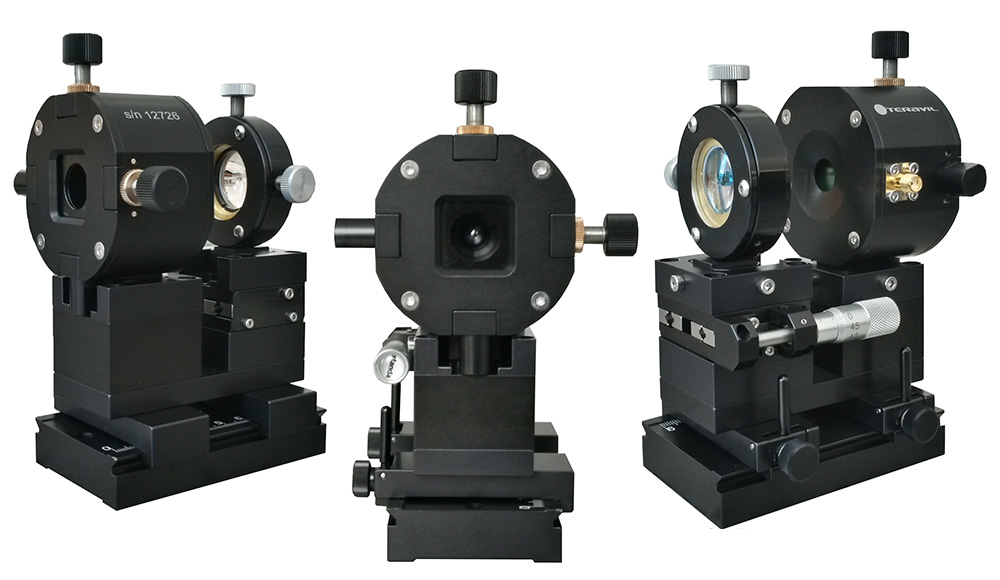

Emitter (or detector) mounted on its stage
Ordering Information
|
Description |
Model |
Notes |
THz emitter/detector mounting stage |
MNT |
Includes pump beam focusing lens on XYZ stage |
|
